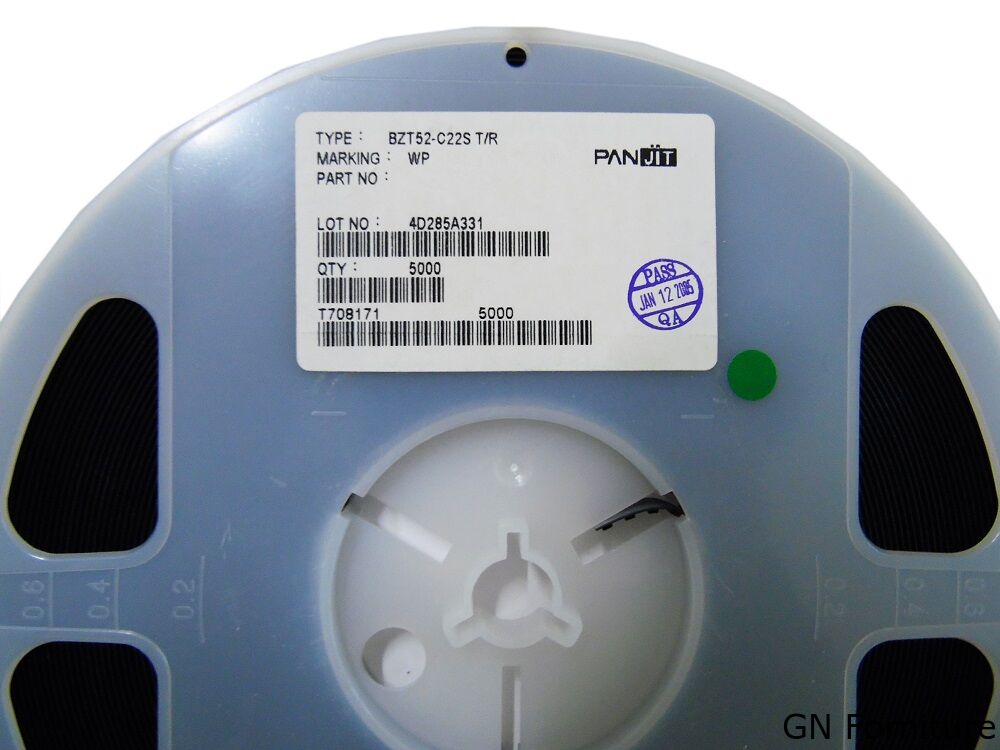

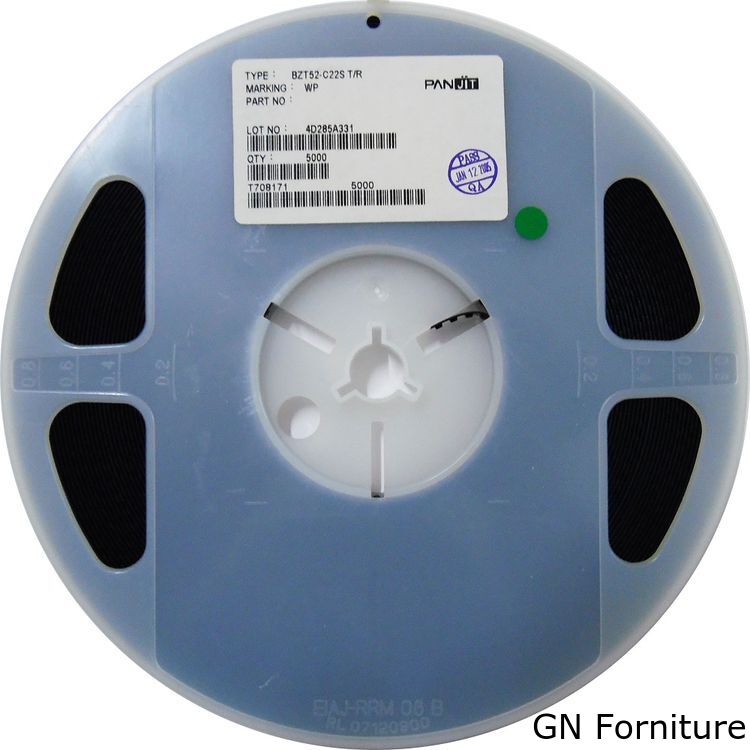

Diodo regolatore di tensione BZT52-C22S T/R Confezione 5000 pezzi
Fai login, così potremo ricontattarti per rispondere
Descrizione
Diodo regolatore di tensione BZT52-C22S T/R Confezione 5000 pezzi
Specifiche tecniche del prodotto
|
RoHS UE |
Compliant |
|
ECCN (US) |
EAR99 |
|
Part Status |
Active |
|
Configuration |
Single |
|
Nominal Zener Voltage (V) |
22 |
|
Zener Voltage Tolerance |
5.67% |
|
Test Current (mA) |
5 |
|
Maximum Reverse Leakage Current (uA) |
0.1 |
|
Maximum Zener Impedance (Ohm) |
55 |
|
Maximum Power Dissipation @ 25C (mW) |
200 |
|
Minimum Operating Temperature (°C) |
-65 |
|
Maximum Operating Temperature (°C) |
150 |
|
Supplier Temperature Grade |
Commercial |
|
Typical Voltage Temperature Coefficient |
18.2mV/°C |
|
Packaging |
Tape and Reel |
|
Automotive |
Yes |
|
AEC Qualified Number |
AEC-Q101 |
|
Pin Count |
2 |
|
Supplier Package |
SOD-323 |
|
Standard Package Name |
SOD |
|
Military |
No |
|
Mounting |
Surface Mount |
|
Package Height |
1.05 |
|
Package Length |
1.7 |
|
Package Width |
1.3 |
|
PCB changed |
2 |
|
Lead Shape |
Gull-wing |
