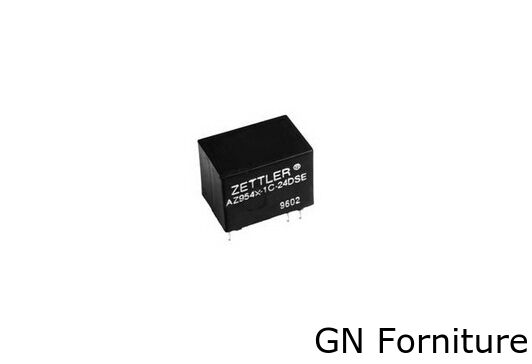

Relè 6V DC SPDT AZ954X-1C-6DSE - ZETTLER
Fai login, così potremo ricontattarti per rispondere
Descrizione
Relè 6V DC SPDT AZ954X-1C-6DSE - ZETTLER
| Fornitore: | American Zettler |
| Codice componente: | AZ954X-1C-6DSE |
| RoHS: | Yes |
| HTS: | 8536490050 |
| COO: | CN |
| ECCN: | EAR99 |
| Relay Construction: | Non-Latching |
| AC Coil Voltage: | N/A |
| DC Coil Voltage: | 6 V |
| Contact Arrangement: | SPDT |
| Maximum Current Rating: | 2 A |
| Mounting: | Through Hole |
| Operating Temperature: | -25 to 95 °C |
| Dimension: | 15.8 x 10.8 x 11.8 mm |
| Termination Style: | PC Pin |
| Coil Current: | 33.33 mA |
| Contact Form: | 1 Form C |
| Unit of Measure: | Per Each |
