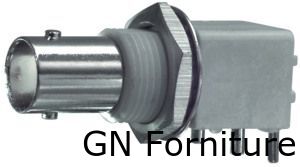

Connettore BNC Femmina da CS isolato
Descrizione
Connettore BNC Femmina da CS isolato
- Produttore : AMP
- P/N : 5227161-9
- Connector Style BNC
- Connector Type Jack, Female Socket
- Contact Termination Solder
- Shield Termination Solder
- Impedance 50 Ohm
- Mounting Type Panel Mount, Bulkhead; Through Hole, Right Angle
- Fastening Type Bayonet Lock
- Frequency - Max 4GHz
- Features Board Guide
- Body Material Zinc
- Body Finish Nickel
- Center Contact Material Phosphor Bronze
- Center Contact Plating Gold
- Dielectric Material Polymethylpentene (PMP)
- Voltage Rating 500V
- Operating Temperature -55°C ~ 85°C
- Colore: Bianco, Nero
